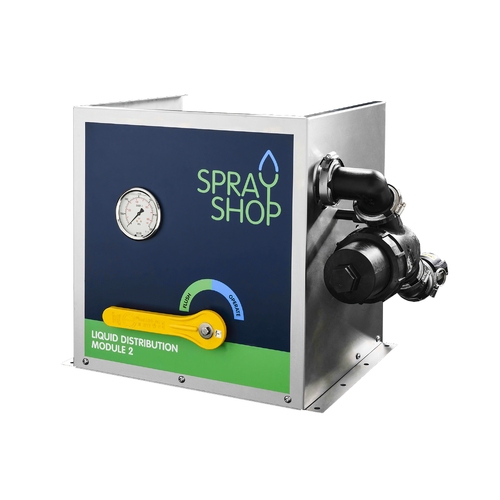

Liquid Distribution Module MK2
SKU: LDMMK2
This product is not available to purchase online. Please contact us for more details & pricing.
Contact Us-
Description

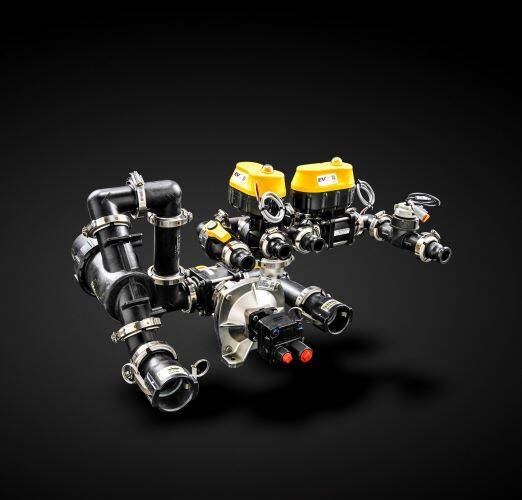

Our LDM modules are available in standard (STD) MK 1 configuration or rate control ready (RCR) MK 2. This is the only system on the market that offers two year warranty against Phosphoric Acid. The MK 1 configuration includes 12V controls to turn the system on/off from the cab and an adjustable throttling valve to set your operating pressure. The RCR MK 2 configuration has the additional features of an electric regulating valve and specially chosen electromagnetic flow meter. This module is ready to accept an existing rate controller or GPS control / auto boom system such as GS2, Trimble EZ-Guide 750 / EZ-Boom, Topcon etc. Both modules include the following features: Hydraulically driven Hypro Stainless Steel pump, 3-way panel mounted ball valve to easily change from main tank to flush tank, High flow Pressure relief valve with bypass agitation, Teejet 316 stainless ball valves, Teejet 316 Stainless servo valves, Banjo Flange fittings, Quick release Banjo Cam-loks and a Stainless Steel Cabinet with a panel mounted, large 100mm pressure gauge. Optional equipment includes an electric flush system to ground. Our modules are built from quality components made of robust chemical resistant materials such as stainless steel- glass reinforced polypropylene, polyester and PVC that are capable of handling highly aggressive products whilst operating under extremely harsh climatic conditions. Using state of the art electronic ball valves and flowmeter, our modules provide top of the range accuracy and responsiveness over a broad range of application rates, row spacings, number of rows and ground speed .The modules can be supplied with a Micro Trak controller or integrated with a variety of control systems. Please contact us for more details on this product.
-
Specifications
SKU LDMMK2 Brand Sprayshop Shipping Weight 25.0000kg Shipping Width 0.800m Shipping Height 0.800m Shipping Length 0.800m -
